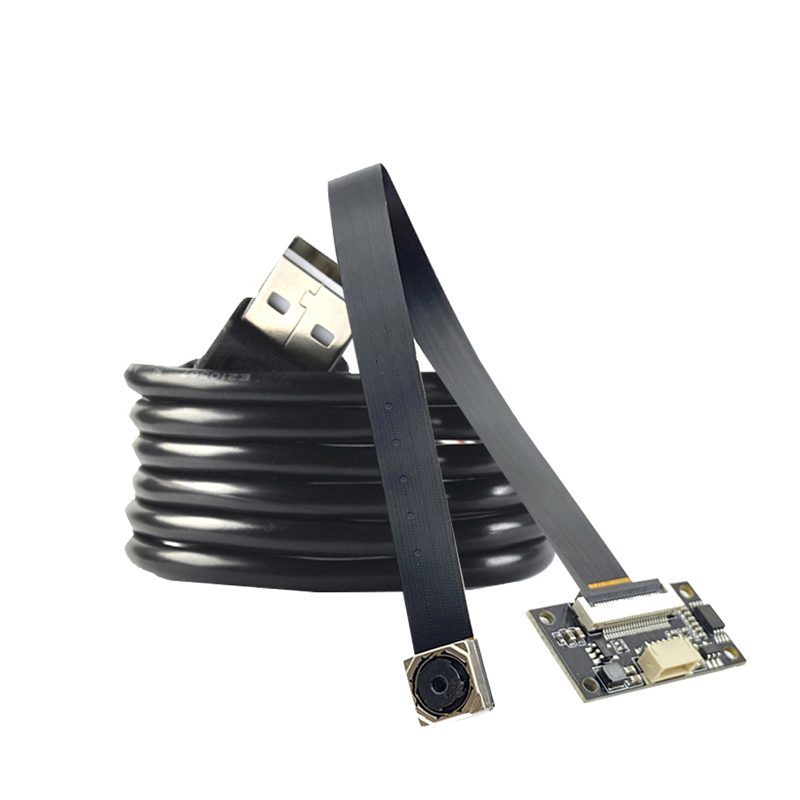

5MP camera module OV5693 FPC cable auto focus module USB driver free OTG FF

Product model DH-AF-5M Sensor/Size OV 1/4 Pixel size 1.4 μ m * 1.4 μ m Focusing method fixed focus (FF) Maximum effective pixel 2592 (H) * 1944 (V) 5 million pixels Output image formats MJPG, YUV2 (YUYV) Resolution and frame rate: Resolution MJPG YUYV 2592*1944 30fps 4fps 2560*1440 30fps 4fps 1920*1080 30fps 5fps 1280*720 30fps 8fps 640*480 30fps 30fps Interface type Usb2.0 Automatic exposure control support Automatic white balance support Automatic focus support Adjustable parameters for brightness, contrast, hue, saturation, clarity, gamma, white balance, backlight contrast, Gain, exposure, scrolling, low brightness compensation. Lens parameters 130 ° power supply mode USB 2.0 4P Working voltage DC5V Working current ≤ 160MA Working temperature -10 ° C~70 ° C Storage temperature -20 °~85 ° C Board size 61 * 9mm supportive system WinXP/Vista/Win7、 8. 10, 11, etc Linux with UVC (above linux -2.6.26) MAC-OS X 10.48 or later Wince with UVC Amdroid 4.0 or above with UVC
